Export Recorded Video

You can export video evidence to your local computer or removable media, in a video file.

• Perform a search to find the video you want to export (see Search/View Archive Video).

Tip: Start and end points can be set after you select the Export Video button.

• When export is complete, the extracted video clip(s) are available as Local Files on the Resource Tree. AVI and MKV files are shown as a single record, EXE and NOV files are contained in a folder. EXE files will display the exported time range in a new tab, and single camera and Bookmarks are displayed as a single item.

Note: If more than one option is selected, they will be layered on top of each other.

Single Camera Export – Exports video archive from a single camera

1. Select the desired camera view in Layout.

2. Select the desired time segment region in Timeline and right-click to open the context menu. Select Export Video.

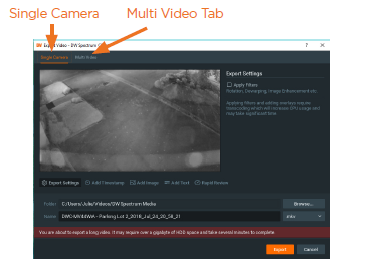

3. Select the Single Camera tab (top left) in the Export Video dialog box and enter/select folder name, file name, and file format.

4. Click on the corresponding button to include options such as image filters, overlay a timestamp, overlay an image file, overlay text, or set the exported video to use the Rapid Review feature.

5. Select the file type to use before exporting.

6. Click the Export Video button.

Multi-Video Export – Exports video and audio from archives of several cameras or multiple local video files simultaneously but not cameras and local files together. Select the desired camera video in Layout and region in Timeline and right-click to open the Export Video dialog box.

1. Click on the Multi Video tab and enter/select folder name, file name, and file format.

2. Optionally, you can check Read-only to prevent the exported video from being edited. You can also add a Password to protect the exported video file.

3. Click the Export button.

Rapid Review Export – Exports video in fast-forward mode for rapid review. The video must be at least 10 seconds long.

1. Select the desired device.

2. Select the desired timespan to export and right-click on the dropdown menu. Select Export Video to open the dialog box.

3. From the Single Camera tab click on the Rapid Review button. It may be necessary to select a different output format to enable the button.

4. Specify a value for each of the following. The Initial video length of the selected segment is displayed for reference:

Exported video length – Enter the desired duration in seconds. (Note: Values in this field are limited to available speeds. The shorter the exported video, the faster the playback speed.)

Speed – Set the speed increase from 10x to 2213x.

Note: When exporting video, elements, i.e. timestamp, logo, text, etc., may be added. See the manual for further instructions.
